Single Shaft Shredder, Scrap Copper Wire Shredder Machine Supplier

FOB Reference Price:Get Latest Price
$10,000.00 - $25,000.00 / Sets | 1 Set/Sets Single Shaft Shredder, Scrap Copper Wire Shredder Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
ZY-S800
Condition:
New
Place of Origin:
Henan, China
Brand Name:
SUNY
Use:
Scrap Cable Shredder
Plastic Type:
Cables, Wires
Shaft Design:
Single
Voltage:
Customized
Dimension(L*W*H):
Variable
Certification:
CE ISO
Name:
Single Shaft Shredder, Scrap Copper Wire Shredder Machine Supplier
Other name:
Single Shaft Shredder
Application:
Shred waste cables/wires into small pieces
Capacity:
600-800kg/h, 0.5t/h - 2t/h
Type:
Single Shaft
Blades material:
9CrSi/D2/SKD-11
Color:
As required
Warranty:
12 Months
Weight:
2200 - 9800 Kg
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
22 - 110 Kw
Power:
22 - 110 Kw
Supply Ability
Supply Ability:
50 Set/Sets per Month Single Shaft Shredder, Scrap Copper Wire Shredder Machine
Packaging & Delivery
Packaging Details
Single Shaft Shredder, Scrap Copper Wire Shredder Machine uses wooden case packing or standard export container
Port
Qingdao Port; Shanghai Port; As your request
Lead Time :
20
Single Shaft Shredder, Scrap Copper Wire Shredder Machine Supplier
SINGLE SHAFT SHREDDER

Single shaft shredder has characters as follows: single shaft shredder properties as follows: strong, durable. It is suitable to recycle a variety of bulk solid materials, refractory materials, plastic containers and plastic barrels, plastic films, fibers, paper. Shredded particles can be small to 20mm according to different needs. We can provide all kinds of feed hopper; low speed rotary cutter in accordance with customer needs , which will be low noisy and energy saving.


SUITABLE RAW MATERIALS

Raw Materials of Our Single Shaft Shredder, Scrap Copper Wire Shredder Machine Supplier:

Plastic bottles, Cardboard. Woven bags. Plastic lumps like PP. PE, PET. PC. ABS. Nylon, Plastic pipes. Film. Plastic moulds, textiles. Woven bags, Electronic Waste. Cable, Aluminum cans, Paper,Wood. Sponge, foam, etc.

MAIN STRUCTURES

Main Structure of Our Single Shaft Shredder, Scrap Copper Wire Shredder Machine Supplier:

1. Shaft, moving blades, fixed blades, reducer, motors, feeding hopper, discharge port, electric control cabinet, control panel, screen, roller, knives holder, etc.

2. After shredding, the dimension of most large plastic or other material will reduce 30%. some material dimension after shredding can up to 50%.

(We have arranged many videos. Please contact us freely if you need.)

Single shaft shredder consists of a knife disc and a static knife to complete shredding material. Cutter is composed of a base shaft and several shape quadrilateral knife block.

The blade can be used in four directions. Blade quality have 9CrSi, Cr12MoV, SKD- II, D2 etc. Can be customized according to customer.

The screen can be changed quickly, the aperture of the mesh is able to control the size of the output material. Special screen can be designed according to the type of your raw materials.

Hydraulic-driven pusher: The hydraulic-driven pusher is equipped with an adjustable guide block and adopts advanced sealing design. Ash chute - remove the dust from the pusher in the shredding process so as to protect the hydraulic system.

Double speed hydraulic system: Push the material box high speed back, maximize the output. The built-in oil/air cooling device is able to meet the needs of continuous production.

PLC control system: When the equipment is overloaded, the knife roller will turn and reverse automatically, and the equipment will stop working automatically when there is no feeding materials.

For more information, Please contact us!Contact Us

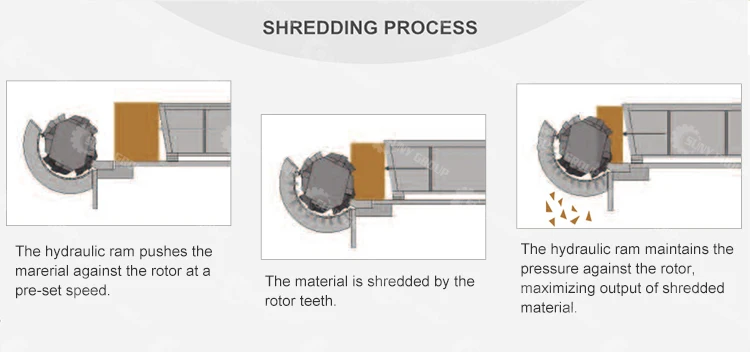

WORKING PRINCIPLE

1. Single shaft shredder is strong and durable It is mainly used to shredder and recycle all kinds of solid material and refractory material, plastic containers, barrels and so on. Shredder particles can be as small as 20 mm according to different needs We can also supply feeding hopper with different specification This machine will be low noisy and energy saving;

2. Knife material: Cr12MoV( Japanese brand SKD* II. American brand D2). the moving knife adopts 'V' installation method, making it cut more uniformly, reducing consumption and noise There are 4 cutting blades on each moving knife. It can be rotated 90° for further use after wear and tear: There are 2 cutting blades on each fixed knife. It can be rotated 180°for further use after wear and tear. The knifes on rotor can be disassembled, it is more easy to clean and maintain;

3. The main shaft is driven by gear reducer so that it is has stable operation, low noise and large torque.The reducer is a very important part of the shredder machine. Although the shredder is a machine with low rotating speed and large torque, the reducer is still important because of its high kinetic energy so that the rotating speed can be controlled effectively;

4. PLC programmer control system, automatic forward and reverse running and stop, it can run full automaticlly and make it more safely and reliably running;

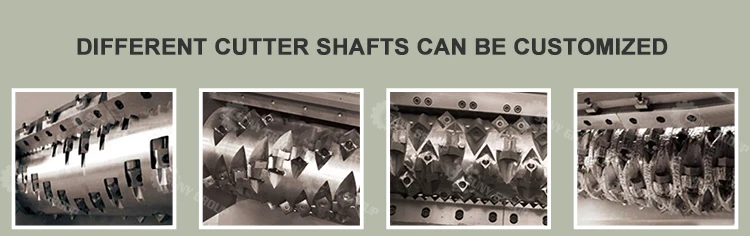

5. We can supply different rollers according to different material. Choosing the right rollers can improve machine performance and production efficiency. We can supply the following three rollers: High performance roller, hard material roller and film roller.

6. We have designed three different knives holders according to the material, such as welded knife holders, assembled knife holders and CNC cutting knife holders.

Technical Parameters
ModelZY-S600ZY-S800ZY-S1000ZY-S1200ZY-S1500
Motor Power (kw)22455575110
Rotor-knives (pcs)26+436+648+65898
Blade MaterialCr12MoV
SKDII
D2
Cr12MoV
SKDII
D2
Cr12MoV
SKDII
D2
Cr12MoV
SKDII
D2
Cr12MoV
SKDII
D2
Rotor Diameter (mm)260400400500550
Rotor Speed (r/min)7575758080
Cutting Chamber (mm)600x600800x8001000x10001200x12001500x1500
Hydraulic Power (kw)2.2345.57.5
Cylinder Stroke (mm)600800100012001500
Machine Size (mm)1800x1600x18502200x1780x21002500x1850x23003500x2000x24004800x2300x2400
Weight (kg)22003700450070009800
TIPS:

1. The above shredder is our standard configuration. For different raw materials to be shredded, the configuration might be different. Please feel free to contact us for detailed information or special request;

2. We have welding, removable and integral blade holders for our single shaft shredder. You can communicate with our sales representative to confirm the suitable blade holder.

FAQ Q: Why Choose Us?

1). Several Year's Experience

We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)

2). Manufacturer, Not Dealer

Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.

3). Fast Delivery:

We promise the goods can be shipped out on delivery date after confirmation of the order.

Q: How do I know the quality of your machine?

A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.

Q: When we only purchase one shredder machine production line, can we use it to shred other scrap materials like?

A: Yes, you can. It depends on the difference of blades teeth and quantity, which can be customized.

Q: Which brand of motor will you use?

A: We use domestic motor manufatured by Chinese-famous suppliers, but you can choose Siemens or other brand motor. Don't worry about our machine's quality.

Q: Will you dispatch the engineer to guide installation?

A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.
