PE PP PVC PET Plastic Bottle Crusher Machine

FOB Reference Price:Get Latest Price
$2,000.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ZY-PC500 ZY-PC600 ZY-PC800 ZY-PC1000
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 30 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China
Brand Name:
SUNY
Use:
Scrap Crushing and Chopping
Plastic Type:
PET
Shaft Design:
Single
Voltage:
Customized
Dimension(L*W*H):
Customized
Certification:
ISO, CE, SGS
Name:
PE PP PVC PET Plastic Bottle Crusher Machine
Other name:
Plastic Chopping Machine
Application:
Plastic Material Crushing and Chopping
Keyword:
Plastic Crusher
Raw material:
Plastic bottles, film, cable wires, paper, etc.
Blades material:
9CrSi SKDII D2
Type:
Plastic Scrap Shredding and Crushing
Output:
Customized
Color:
As you required
Warranty:
12 months
After-sales Service Provided:
Engineers available to service machinery overseas
Power:
11-55 Kw
Capacity:
300-1200 Kg/H
Power(W):
11-55 Kw
Weight:
Customized
Supply Ability
Supply Ability:
20 Set/Sets per Month PE PP PVC PET Plastic Bottle Crusher Machine
Packaging & Delivery
Packaging Details
wooden cases for PE PP PVC PET Plastic Bottle Crusher Machine
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 15 30 45 To be negotiated

PE PP PVC PET Plastic Bottle Crusher Machine

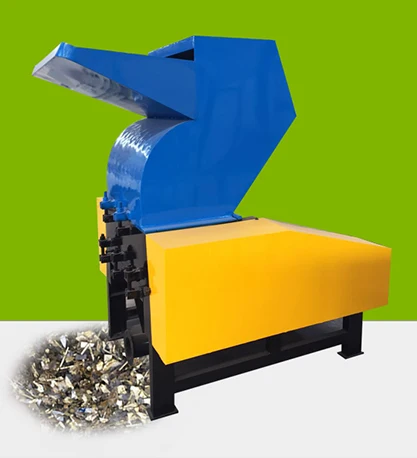

PLASTIC CRUSHER

Suitable for recycle all kinds of hard plastic, like bottles, containers,pellets plastic, sheets.

The seating force is a stepped shearing design, which decomposes the chipless force and causes the chipless force to multiply and uniformly granulate the product.


SUITABLE RAW MATERIALS

Suitable for recycle all kinds of hard plastic, like bottles, containers,pellets plastic,sheets, Film,Cables, Paper, etc.

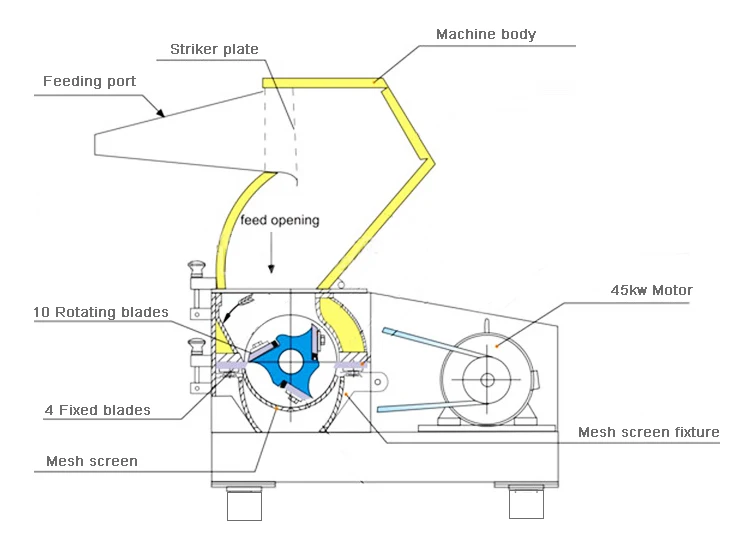

MAIN STRUCTURES

The cutter stand is designed as a step-shearing style which can resolve the force bored by cuttings, and increase the force of cutting greatly.

(We have arranged many videos. Please contact us freely if you need.)

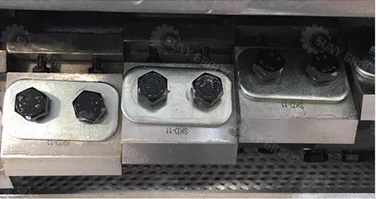

Step-shearing style cutter can resolve the force bored by cuttings, and increase the force of cutting greatly. Blade quality have 9CrSi, C12MoV, SKD- II, D2 etc. Can be customized according to customer.

The crushing room use noise arrester, to lower noise. Crushing room materials is high quality steel, rigid reasonable and durable.

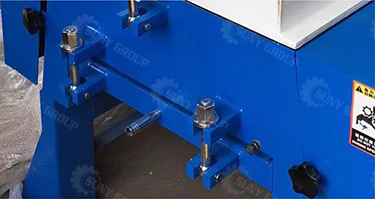

Lockable screen support frame: Robust frame to support the screen maintains the screen shape and avoids damage to the screen. Convenient screen replacement.

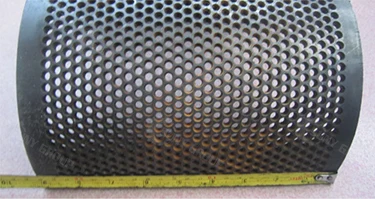

The aperture of the mesh is able to control the size of the output material. Special screen can be designed according to the type of your raw materials.

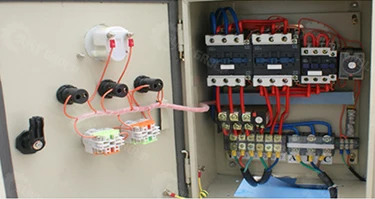

Button control, easy to operate, set up, stop, reverse, overload protection and other functions.

Robust welded hopper with additional support struts to increase strength of hopper and prolong service life. The feed inlet is provided with a protective device for increasing safety.

For more information, Please contact us!Get Quotes
Technical Parameters
ModelZY-PC500ZY-PC600ZY-PC800ZY-PC1000
Capacity (Kg/H)300-350350-450450-800800-1200
Rotor-blade (pcs)15182430
Blade Material9CrSi
SKDII
D2
9CrSi
SKDII
D2
9CrSi
SKDII
D2
9CrSi
SKDII
D2
Counter-blade (pcs)2444
Power (Kw)11152255
TIPS:

1. The above shredder is our standard configuration. For different raw materials to be shredded the configuration might be different. Please feel free to contact us for detailed information or special request.

FAQQ: Why Choose Us?

1). Several Year's Experience

We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)

2). Manufacturer, Not Dealer

Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.

3). Fast Delivery:

We promise the goods can be shipped out on delivery date after confirmation of the order.

Q: How do I know the quality of your machine?

A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.

Q: When we only purchase one shredder machine production line, can we use it to shred other scrap materials like?

A: Yes, you can. It depends on the difference of blades teeth and quantity, which can be customized.

Q: Which brand of motor will you use?

A: We use domestic motor manufatured by Chinese-famous suppliers, but you can choose Siemens or other brand motor. Don't worry about our machine's quality.

Q: Will you dispatch the engineer to guide installation?

A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.
