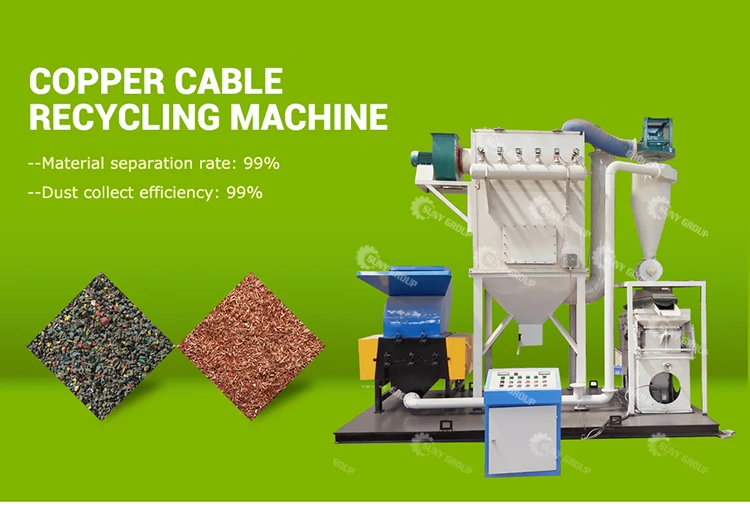

The Copper Granulator Cable Recycling Machine Scrap Copper Wire Separator Factory is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC. This machine can recycle the copper wire which diameterer is 0.3mm-20mm. Automobile electrical wire or the electric wire of car, motorcycle electric wire, computer case wire and communication calbe, etc.
Copper Granulator Cable Recycling Machine Scrap Copper Wire Separator Factory process the waste electric wire and cable into copper and plastic granule. Copper is separated from the plastic, separation efficiency can be 99%. For the copper granule, it can be sold directly or go to further refining. Through our copper electrolysis machine, the copper can be refined into cathode copper in above 99.99% purity. The plastic granules normally are PVC or rubber material, it can also be sold directly.

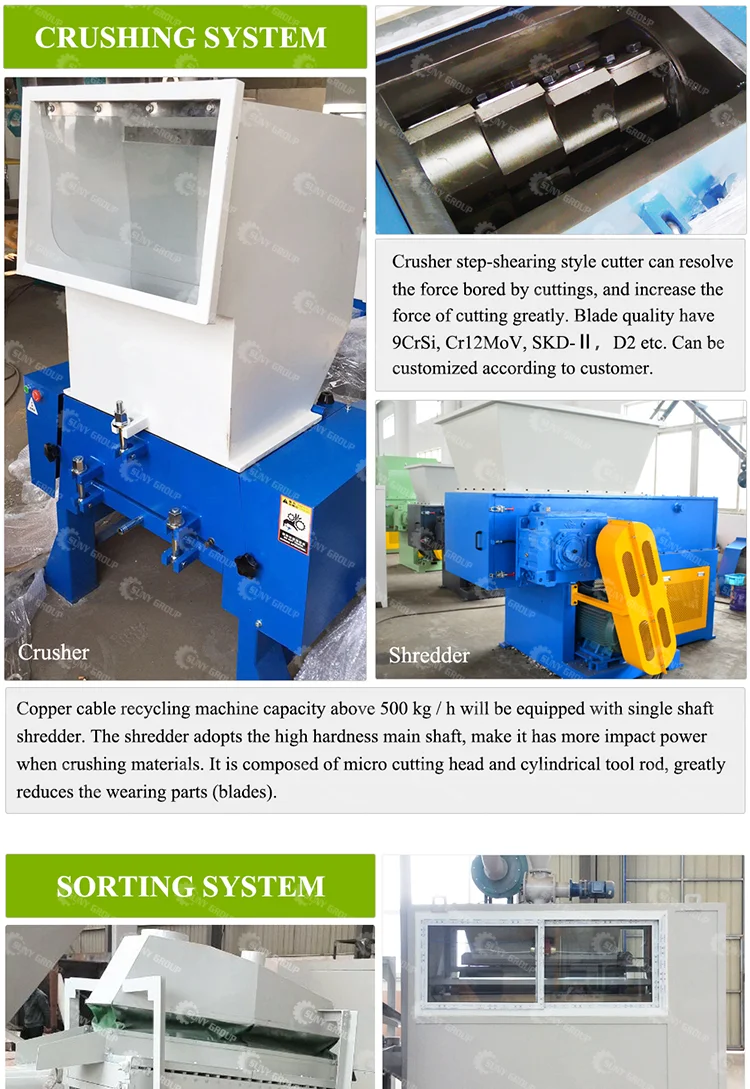

The Copper Granulator Cable Recycling Machine Scrap Copper Wire Separator Factory consists of shredding system, crushing system, sorting system and dust collection system. The whole process is controlled by PLC.

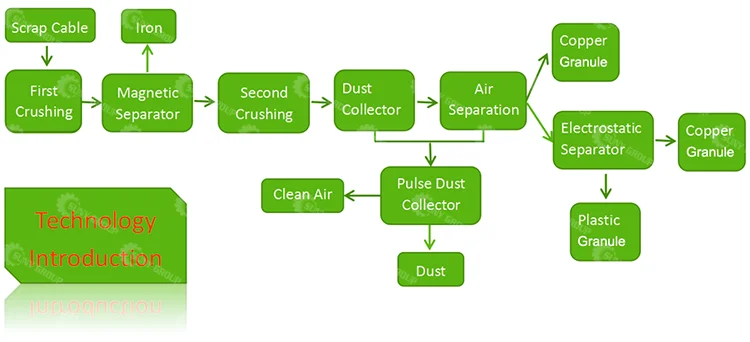

Through shredding, crushing, vibration screening, (the incompletely separated metal and nonmetal will reentry into the crushing machine and be crushed again) gravity separating, electrostatic separating and pulse dust collecting, the separation rate of the copper and plastic will reach about 99% , eventually get metal and non-metallic collective.
For the small capacity, the cable wire raw material can be put into the all-in-one machine directly, after crushing, then the air separtor will make the copper and plastic suspended on the screen. Then the Copper will be separated from the plastic by weighting method and the friction force which produced by the Surface of the mesh.
For larger capacity, the cable wire raw material will be firstly put into the shredder, then go into crusher to get the small pieces wires, then the air separator will make the copper and plastic suspended on the screen to separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. The copper wire recycling production line including the crushing system, air separator system, dust and fiber collection system and high voltage electrostatic separator.
1. Compact structure and reasonable layout, safe and reliable, easy to install, No dust outlet, the dust separation rate can reach up to 99%.
2. Controlled by PLC. Continuous feed, intelligent operation, automatic alarm make it easy to operate and save your time and energy, to ensure the stable operation of the equipment.
3. Back feeding system will crush the unfinished material again, which guarantee the totally separation of copper and plastic.
4. This Copper Granulator Cable Recycling Machine Scrap Copper Wire Separator Factory use the air separator and the high voltage electrostatic separator together, to improve the recovery rate up to 99%.
1. Working voltage:380±10V(415V ,440V also can be custom);
2. It can be customized fur 1t/h ur larger capacity.
(If you want more detailed parameters and quotations, please contact us)

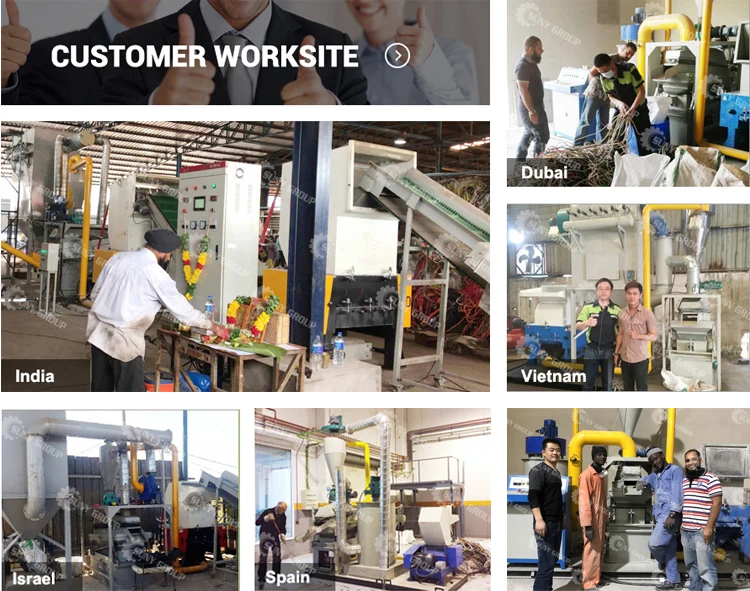

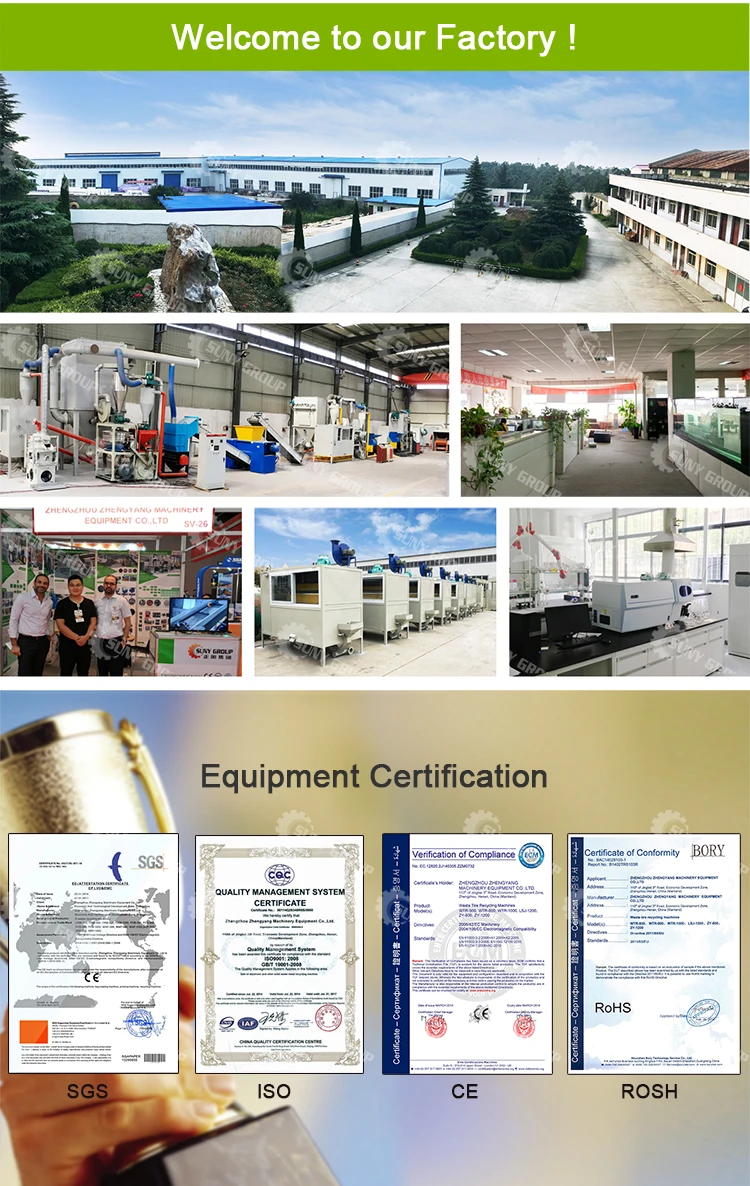

We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)
2). Manufacturer, Not Dealer
Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.
3). Fast Delivery:
We promise the goods can be shipped out on delivery date after confirmation of the order.
Q: How do I know the quality of your machine?
A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: When we only purchase one shredder machine production line, can we use it to shred other scrap materials like?
A: Yes, you can. It depends on the difference of blades teeth and quantity, which can be customized.
Q: Which brand of motor will you use?
A: We use domestic motor manufatured by Chinese-famous suppliers, but you can choose Siemens or other brand motor. Don't worry about our machine's quality.
Q: Will you dispatch the engineer to guide installation?
A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.
